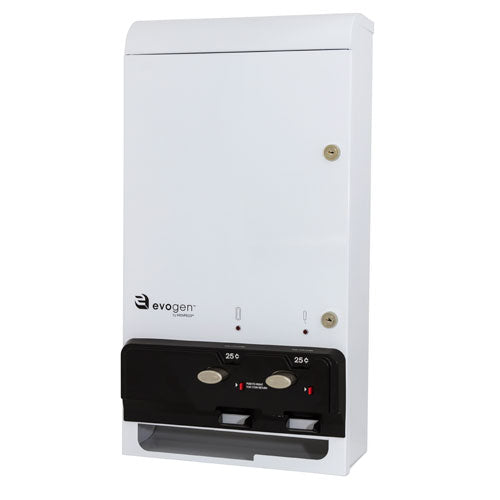

Evogen® Dual Feminine Hygiene Dispenser (EV1)

**** Limited Supplies - Contact us to Pre-order and for current availablity.

Product Description

Modern, streamlined design

ADA compliant push button dispense

Front loading on the door for easier and faster restocking

Empty indicator lights (uses one 9 volt battery-included)

Coin return when empty or for when incorrect coin is used

Available with Free vend or 25¢ coin mechanism

Dispenses both sanitary napkins and tampons

Dispenses (14) Size #4 Box Sanitary Napkins & (22) Tampons

Adjustable tampon channel to accommodate future product opportunities

Available in white metal or stainless steel

25 cent vend includes coin box lock and key

Overall Dimension: 14"W x 26"H x 5-5/8"D

US Patent #s: 9,501,888 and 9,721,419

All Evogen^®FREE vendors include a patented factory-programmed delay of 8-12 seconds to reset the push button. Push button will reset with a click sound. The reset feature will discourage abuse and over dispensing.

Temperature and humidity can affect the time delay setting.

To adjust the time delay, a phillips screw driver is provided. A very slight adjustment to the time delay screw, clockwise or counter clockwise, will result in a 2 second change.

To increase time delay: turn screw clockwise ever so slightly.

To decrease time delay: turn screw counter clockwise ever so slightly.

Do not tighten screw completely clockwise or the dispenser will not operate.

Turning the time delay screw all the way counter clockwise will eliminate the delay completely. Do not remove screw.

Refills sold separately:

T500

MT-4

Coin Mech

Free (EV1-FREE)

Login to see price

Specs Docs

Document
Spec Sheet	EV1 Spec Sheet.pdf

SKU	EV1-FREE
Case Depth	29.13
Case Gross Weight	26
Case Height	9.88
Case Width	16.54
Coin Mech	Free
Color	White
Cube	2.75
Description	Free Vend
GTIN ITF 14	10075289522007
Quantity	Each
UPC	075289522000

25 Cent (EV1-25)

Login to see price

Specs Docs

Document
Spec Sheet	EV1 Spec Sheet.pdf

SKU	EV1-25
Case Depth	29.13
Case Gross Weight	26
Case Height	9.88
Case Width	16.54
Coin Mech	25 Cent
Color	White
Cube	2.75
GTIN ITF 14	10075289522014
Quantity	Each
UPC	075289522017
